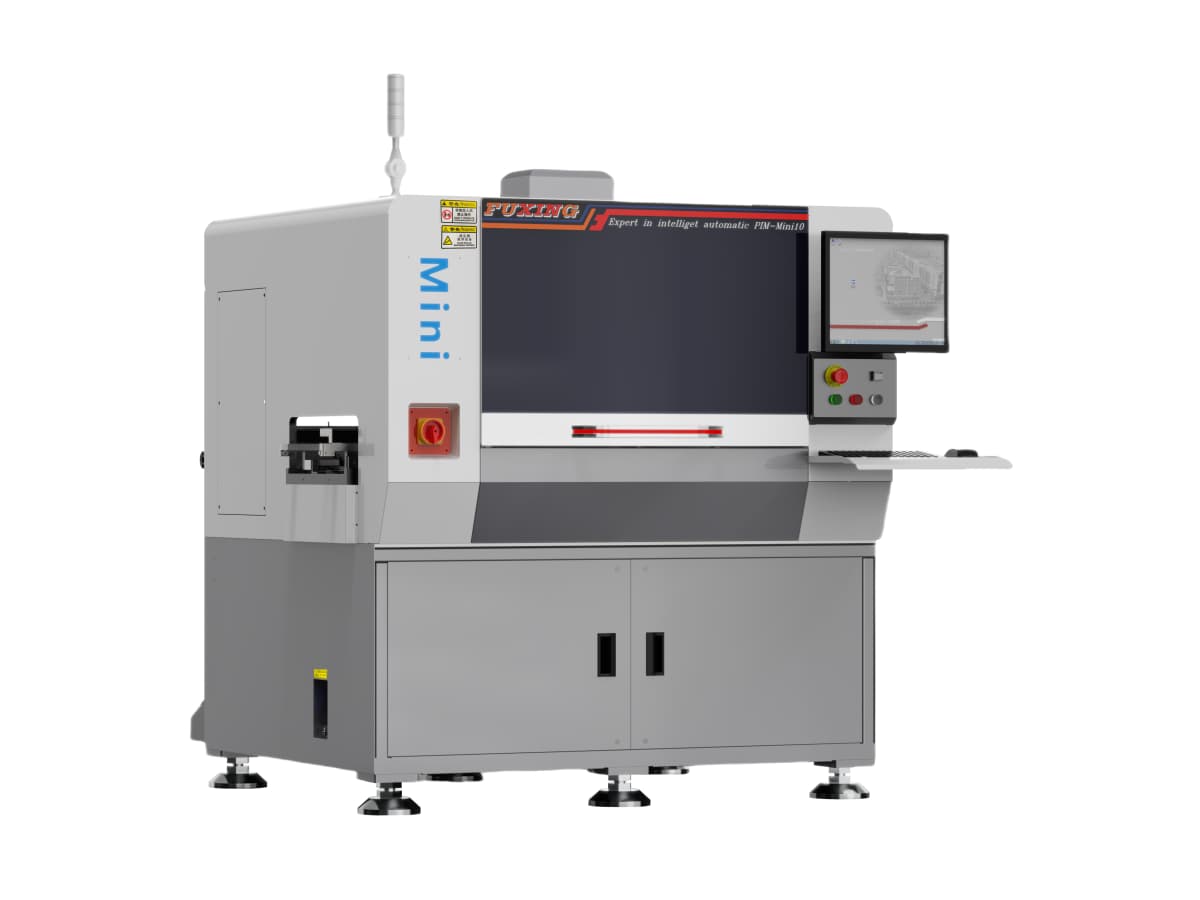

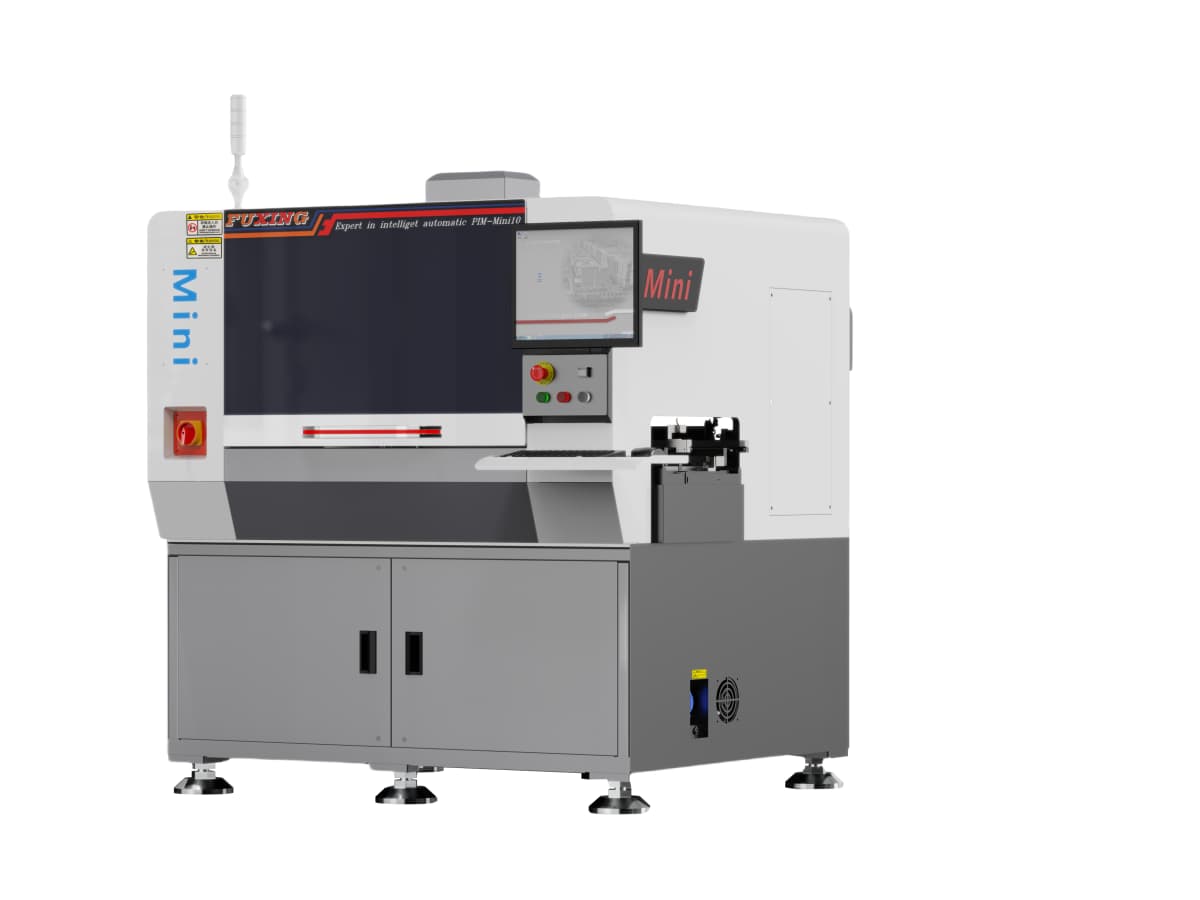

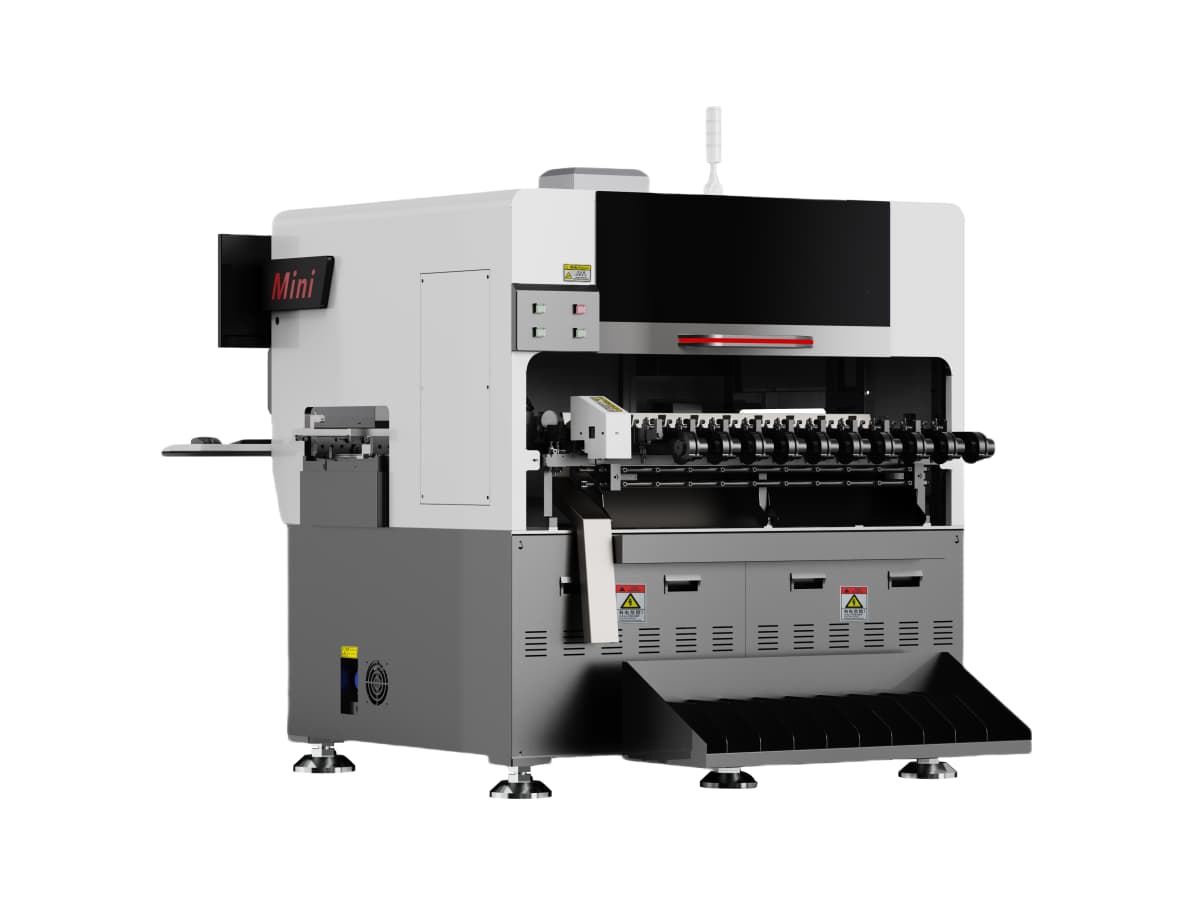

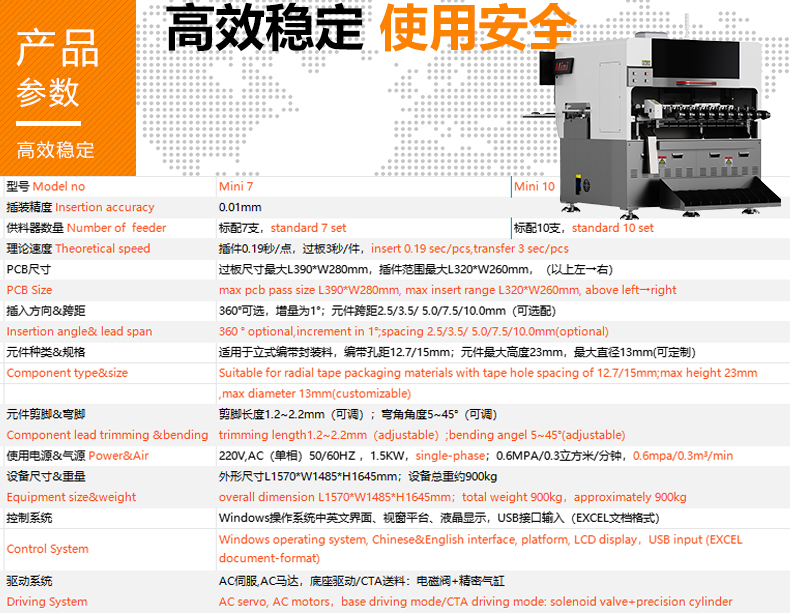

| 型號 Model no | Mini 7 | Mini 10 |
| 插裝精度 Insertion accuracy | 0.01mm | |
| 供料器數量 Number of feeder | 標配7支，standard 7 set | 標配10支，standard 10 set |
| 理論速度 Theoretical speed | 插件0.19秒/點，過板3秒/件，insert 0.19 sec/pcs,transfer 3 sec/pcs | |
| PCB尺寸 | 過板尺寸最大L390*W280mm，插件范圍最大L320*W260mm，（以上左→右） | |
| PCB Size | max pcb pass size L390*W280mm, max insert range L320*W260mm, above left→right | |
| 插入方向&跨距 | 360°可選，增量為1°；元件跨距2.5/3.5/ 5.0/7.5/10.0mm（可選配） | |
| Insertion angle& lead span | 360 ° optional,increment in 1°;spacing 2.5/3.5/ 5.0/7.5/10.0mm(optional) | |

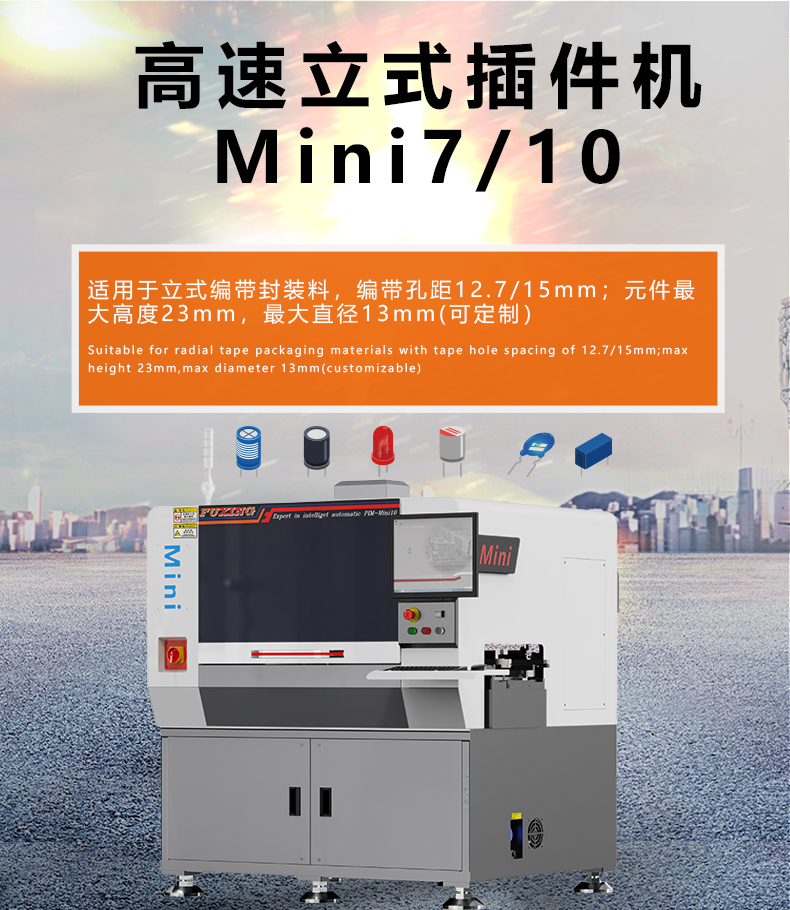

| 元件種類&規格 | 適用于立式編帶封裝料，編帶孔距12.7/15mm；元件最大高度23mm，最大直徑13mm(可定制） | |
| Component type&size | Suitable for radial tape packaging materials with tape hole spacing of 12.7/15mm;max height 23mm | |
| ,max diameter 13mm(customizable) | ||
| 元件剪腳&彎腳 | 剪腳長度1.2~2.2mm（可調）；彎角角度5~45°（可調） | |
| Component lead trimming &bending | trimming length1.2~2.2mm（adjustable）;bending angel 5~45°(adjustable) | |
| 使用電源&氣源 Power&Air | 220V,AC（單相）50/60HZ ，1.5KW，single-phase；0.6MPA/0.3立方米/分鐘，0.6mpa/0.3m3/min | |
| 設備尺寸&重量 | 外形尺寸L1570*W1485*H1645mm；設備總重約900kg | |
| Equipment size&weight | overall dimension L1570*W1485*H1645mm；total weight 900kg，approximately 900kg | |
| 控制系統 | Windows操作系統中英文界面、視窗平臺、液晶顯示，USB接口輸入（EXCEL文檔格式） | |
| Control System | Windows operating system, Chinese&English interface, platform, LCD display，USB input (EXCEL document-format) | |
| 驅動系統 | AC伺服,AC馬達，底座驅動/CTA送料：電磁閥+精密氣缸 | |
| Driving System | AC servo, AC motors，base driving mode/CTA driving mode: solenoid valve+precision cylinder | |
